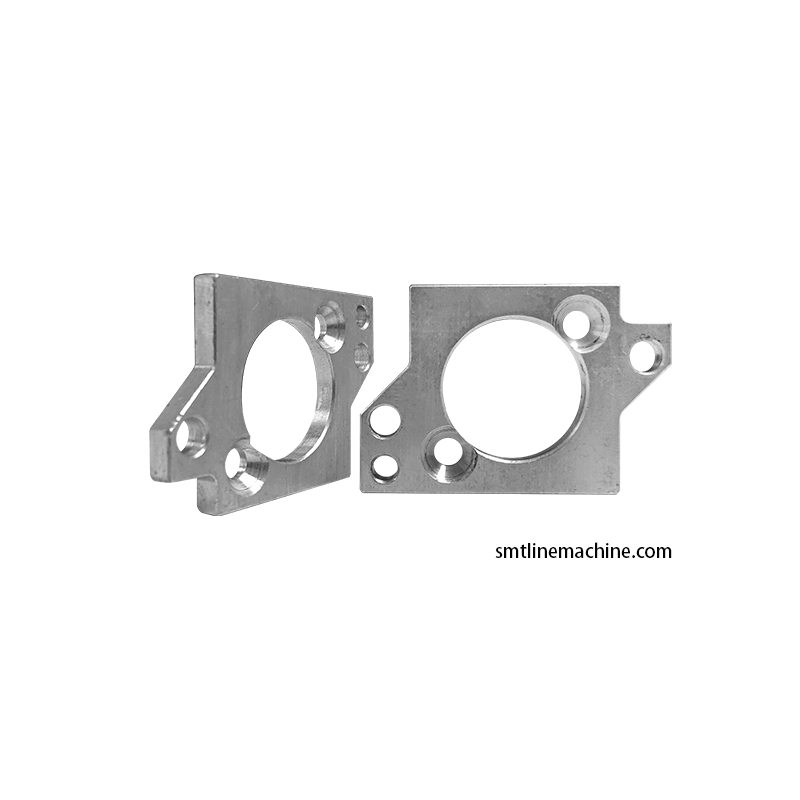

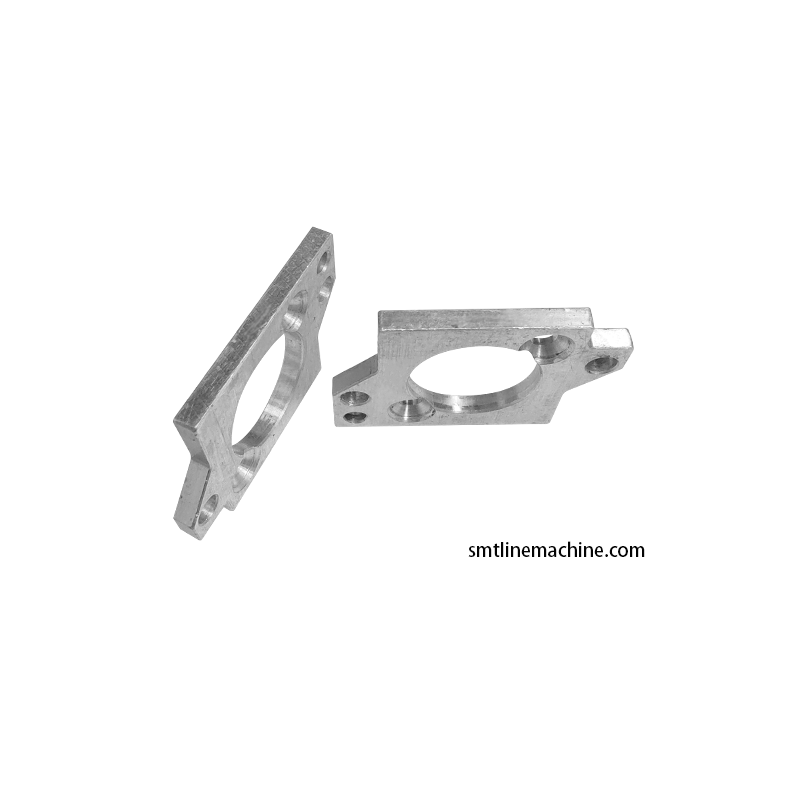

KGS-M712M-00X Aluminum Shim Positioning Holder Original Support Spare Part For YAMAHA YG100 Z Axis Motor
-
Hervorheben
YAMAHA YG100 Z Axis Motor shim holder
,Aluminum positioning holder for YAMAHA YG100
,Original YAMAHA motor support spare part
-
HerkunftsortJAPAN
-
MarkennameYAMAHA
-
ZertifizierungCE- KGS-M712M-00X
-
ModellnummerKGS-M712M-00X
-
Min Bestellmenge1 Maschinensatz oder eine gemischte Bestellung ist ebenfalls akzeptabel. Transport: Als Schüttgut od
-
PreisVerhandlungsfähig
-
Verpackung InformationenStandard-Exportkartons und stabile Hartholzverpackungen sind beide Optionen
-
Lieferzeit1-2 Werktage
-
ZahlungsbedingungenL/C, D/A, D/P, T/T, Western Union, MoneyGram
KGS-M712M-00X Aluminum Shim Positioning Holder Original Support Spare Part For YAMAHA YG100 Z Axis Motor
KGS-M712M-00X Aluminum Shim Positioning Holder Original Support Spare Part For YAMAHA YG100 Z Axis Motor
This aluminum shim holder is a dedicated original positioning component for YG100 vertical drive assembly. Crafted via precision CNC cutting with uniform thickness adjustment shim integrated, it matches the mounting base of 17W Z axis servo motor perfectly.
Technical Specifications
| Part Number | KGS-M712M-00X |
| Product Name | YAMAHA Aluminum Positioning Holder With Adjusting Shim For YG100 17W Z Axis Servo Motor |
| Applicable Equipment | YAMAHA YG100 mid-speed chip placement machines equipped with 17W vertical servo drive |
| Brand | YAMAHA |
| Supplier | CNSMT |
| Condition | Brand New |
Function & Purpose
Installed between machine head frame and 17W vertical servo motor, this SMT machine support part fills assembly gaps to fine-tune motor horizontal calibration. It locks the motor base firmly to avoid slight displacement during high-frequency up-down movement, stabilizes vertical transmission precision of placement spindle.
Core Functions
- Integrated aluminum substrate with matched adjusting spacer accurately calibrates horizontal deviation of 17W servo motor
- Multiple original standard positioning holes enable direct installation without modification for all YG100 equipment variants
- Hard anodized anti-oxidation coating blocks workshop oil and solder dust to extend service life of the support part
- Layered buffer limiting structure disperses motor operating vibration to slow abrasion of transmission lead screw
CNSMT supplies fully inspected original KGS-M712M-00X aluminum positioning holders compatible with YAMAHA YG100 series mounters. Accurate gap adjustment and vibration isolation stabilize vertical drive operation of 17W Z axis motor, reducing unexpected machine halt caused by motor assembly deviation.
